The client is a global retail company with hundreds of stores worldwide. They rely heavily on in store demo staff who can demonstrate smart home products like speakers and voice assistants. These demonstrators need an ongoing development to gain knowledge about new products, ad conformity rules and how they should interact with consumers for a reliable and faithful brand experience.

The monolithic training platform that the customer had in place was not made to grow. On premise servers bottlenecked during large-scale training deployments, reporting consistently lagged, and content delivery was slow. Because managers were blind to learner progress, governance was hard to implement. Training materials were often out of date, which resulted in uneven experiences for customers and teams.

The business required a cutting edge solution that could manage scale on-demand, offer real-time reporting and visibility, and guarantee governance all the while providing a consistent training experience using AWS’s enterprise-grade infrastructure and Bsharp Converse’s learning expertise.

In order to streamline learner tracking, assessments, and content delivery, Bsharp Converse was implemented as the primary training orchestration layer. All learner data management was fueled by Amazon RDS for MySQL at the heart of this architecture. RDS provided a dependable foundation for reporting and analytics by managing and storing user metadata, training history, and content consumption records.

To ensure that the primary database handled only live transactions, read replicas were set up to offload workloads that involved a lot of queries, like dashboards and performance reports. With this configuration, the legacy system’s reporting delays were removed, giving managers access to real-time data on learner progress and compliance. Additionally, RDS made it possible to optimize queries for intricate reports that divided data according to completion rates, training modules, and user roles. High availability and fault tolerance were guaranteed during worldwide rollouts, even during periods of high demand, thanks to automated backup, Multi-AZ failover, and replica synchronization. RDS ensured governance and visibility at scale by centralizing learner and performance data, making it the administrators’ and managers’ only source of truth.

AWS services offered the performance and scalability required for enterprise-wide deployments around this backbone. Large training resources, like product videos and reference materials, were stored on Amazon S3 and then distributed globally with low latency by Amazon CloudFront.

To ensure safe and fast connections to RDS, the Converse backend was housed on Amazon EC2 instances in private subnets. EC2 capacity automatically flexed to accommodate thousands of concurrent learners without bottlenecks thanks to Auto scaling. Amazon CloudWatch and CloudTrail offered ongoing monitoring and audit logging, while AWS WAF, AWS KMS, and IAM enforced security and compliance.

The customer obtained a safe and expandable platform by combining the training capabilities of Bsharp Converse with AWS infrastructure, which is supported by the technical prowess of Amazon RDS. In addition to resolving the previous problems of slow delivery and postponed reporting, this gave managers access to real-time dashboards and uniform governance for all enterprise training programs.

Following deployment, the client saw lower expenses, increased dependability, and quicker reporting. Managers received real-time performance insights, and demonstrators had instant access to updated training materials.

Important enhancements included:

• As training assets were cached in CloudFront edge locations and fetched from S3, latency was reduced across global retail stores, resulting in 10× faster content delivery.

• Report generation decreased from 20 minutes to 2 minutes by separating reporting from transactional workloads by offloading analytics queries to RDS read replicas.

• Auto Scaling EC2 instances and optimizing RDS resources eliminated idle infrastructure overhead, resulting in a 25% cost savings.

• 70% fewer issues reported by customers as a result of automated patch management, consistent training module synchronization, and stable Multi-AZ failover.

• Using RDS Multi-AZ deployment with automatic failover in less than 60 seconds during disruption, a 99.99% uptime was maintained.

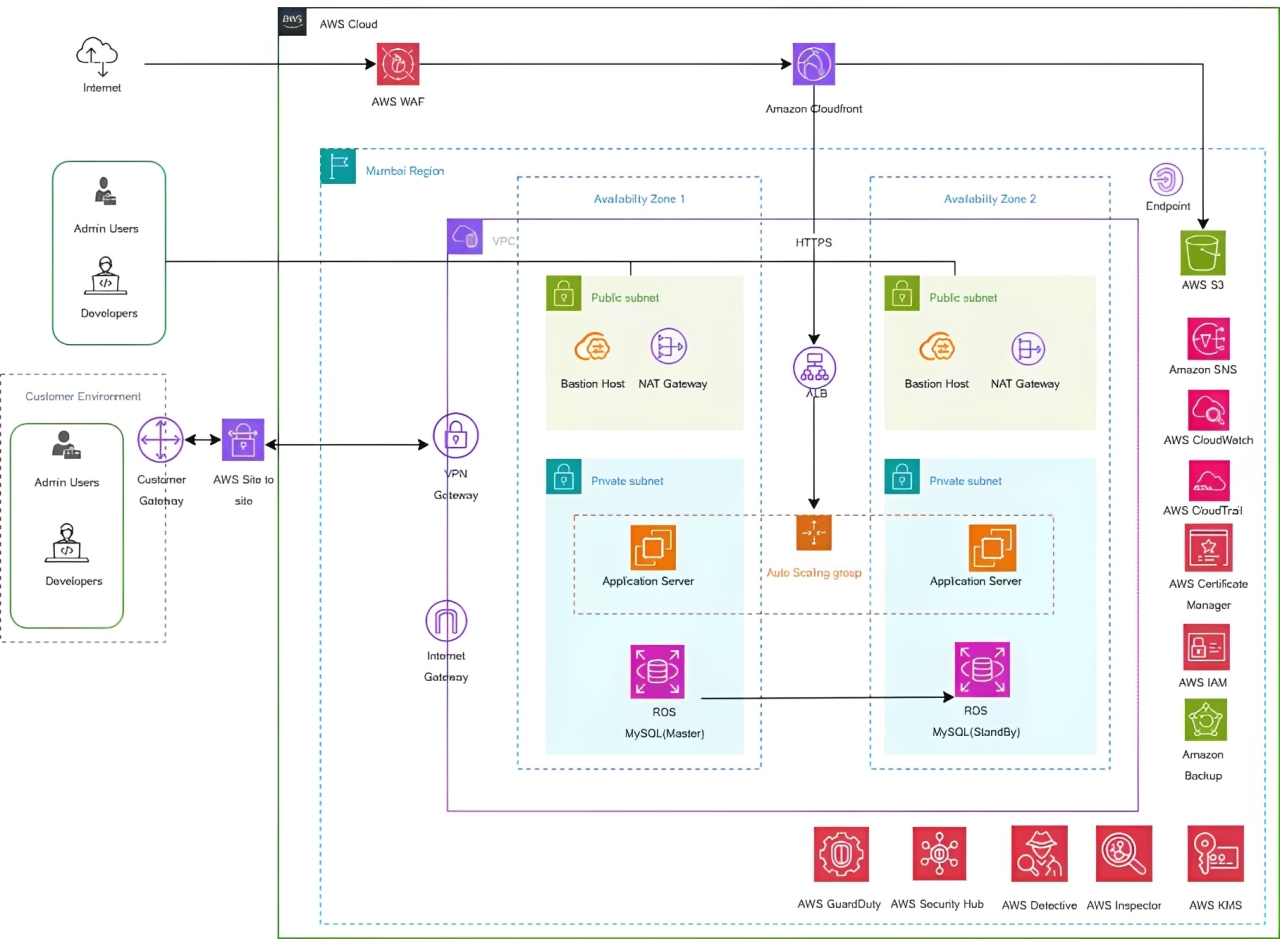

Scalability, security, and dependability were all factors in the system’s design. AWS supplied the backbone to satisfy enterprise-scale requirements, while Converse coordinated learning workflows.

Important elements included:

• Database Layer: Amazon RDS is set up in Multi-AZ with read replicas, PITR, automated backups, and synchronous replication to speed up reporting queries.

• Application Layer: Auto Scaling groups are integrated with the Converse backend, which is hosted on Amazon EC2, to provide elastic compute provisioning during training surges.

• Content Delivery: CloudFront CDN for worldwide distribution, reducing latency and bandwidth usage, combined with Amazon S3 for long-lasting media storage.

• Security & Governance: WAF mitigated external threats, KMS enabled TLS for data in transit and AES-256 encryption at rest, and IAM enforced least-privilege access.

• Automation & Monitoring: RDS Performance Insights, CloudTrail, and CloudWatch alarms recorded all API activity and performance baselines.

The customer minimized expenses and operational overhead by utilizing Converse in conjunction with AWS-native automation.

Among the main efficiencies were:

• By using RDS storage autoscaling to right-size resources and dynamically scaling EC2 clusters, a 25% reduction in infrastructure costs is possible.

• Backups, failover tests, and patch cycles were automated using CloudWatch events and RDS maintenance windows, resulting in 45% fewer manual tasks.

• Routing complex queries to RDS read replicas reduced the load on the production database and improved reporting throughput.

• Multi-AZ deployment, PITR-enabled backups, and automated snapshots protecting learner data all contribute to a lower operational risk.

The implementation gave the company a training platform that scaled consistently across geographical boundaries and produced quantifiable results. Managers were given immediate access to learner progress data, and demonstrators were given training updates more quickly.

Important results included:

• Combining EC2 Auto Scaling for elastic workloads with RDS Multi-AZ high availability consistently results in 99.99% uptime.

• Synchronous replication across availability zones and automated DNS redirection allow for failover recovery in less than 60 seconds.

• Because CloudFront served cached modules from edge nodes, lowering round trips to origin, there was a 40% lower latency in content access.


• Converse’s sync engine integrates directly with S3 object versioning, providing training modules with dependable version control.

The project reaffirmed how crucial it is to combine AWS’s powerful services with a domain-specific platform like Converse. Early governance and observability integration guaranteed long-term scalability and prevented expensive retrofits.

Among the important lessons learnt were:

• To identify and address irregularities early, CloudWatch dashboards, CloudTrail logs, and RDS Performance Insights are used to Embed observability upfront.

• To meet governance standards at deployment, design compliance first architectures that make use of WAF protections, KMS encryption, and IAM policies.

• To isolate reporting workloads, ensure production stability, and speed up analytics, strategically use read replicas strategically.

• In order to accommodate varying training loads, EC2 and RDS resources should be automatically scaled from day 1.

From the beginning, security and governance were integrated into the deployment in accordance with AWS best practices.

Among the important governance measures were:

• To lower the risk of credential misuse, administrators are required to implement MFA and IAM policies with least privilege access.

• All learner and training data are encrypted using KMS encryption, which guarantees TLS 1.2+ in transit between services and AES 256 encryption at rest.

• For compliance traceability, the centralized CloudTrail and RDS audit logs are safely kept in versioned S3 buckets with server-side encryption (SSE).

• Automated compliance checks are set up using AWS Config to continuously verify resource configurations against governance policies.
